RIO

-Residential Design-
Gaithersburg, MD 2025
Schematic Design | Master Plan






Located within the greater Washingtonian Center community, which is centered around a 12-acre lake, RIO Washingtonian is a vibrant mixed-use property with retail, restaurants, office, and entertainment uses. The introduction of multifamily residential and additional commercial, along with a small number of stacked townhouses, will create a true mixed-use community where people can live, work, and play.








Focus:


RIO Residential is designed with a focus on pedestrian circulation throughout the site. The street and path network maximizes connections to ensure walkability and friendliness and maintains
pedestrian access around the lake.
The RIO Residential design guidelines are intended to be complementary to the existing design at RIO Washingtonian. Although it is not the intent to create separate and distinct residential buildings, it is the intent to present an evolution of the architecture and design within the mixed-use project.

Currently, the property is exclusively used for retail and entertainment purposes. This project adds residential uses that will be integrated into the project.

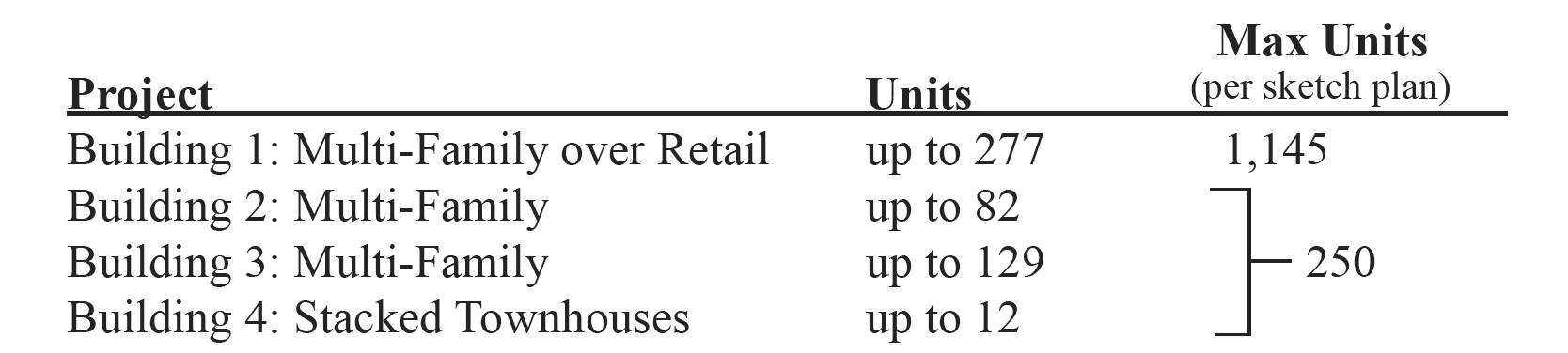

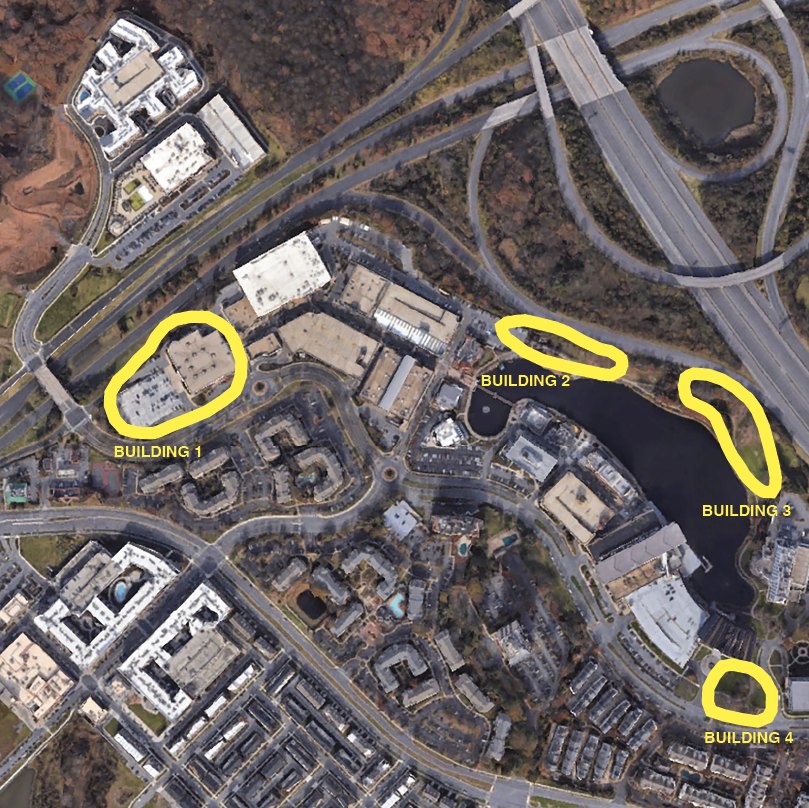

Residential Site Plan

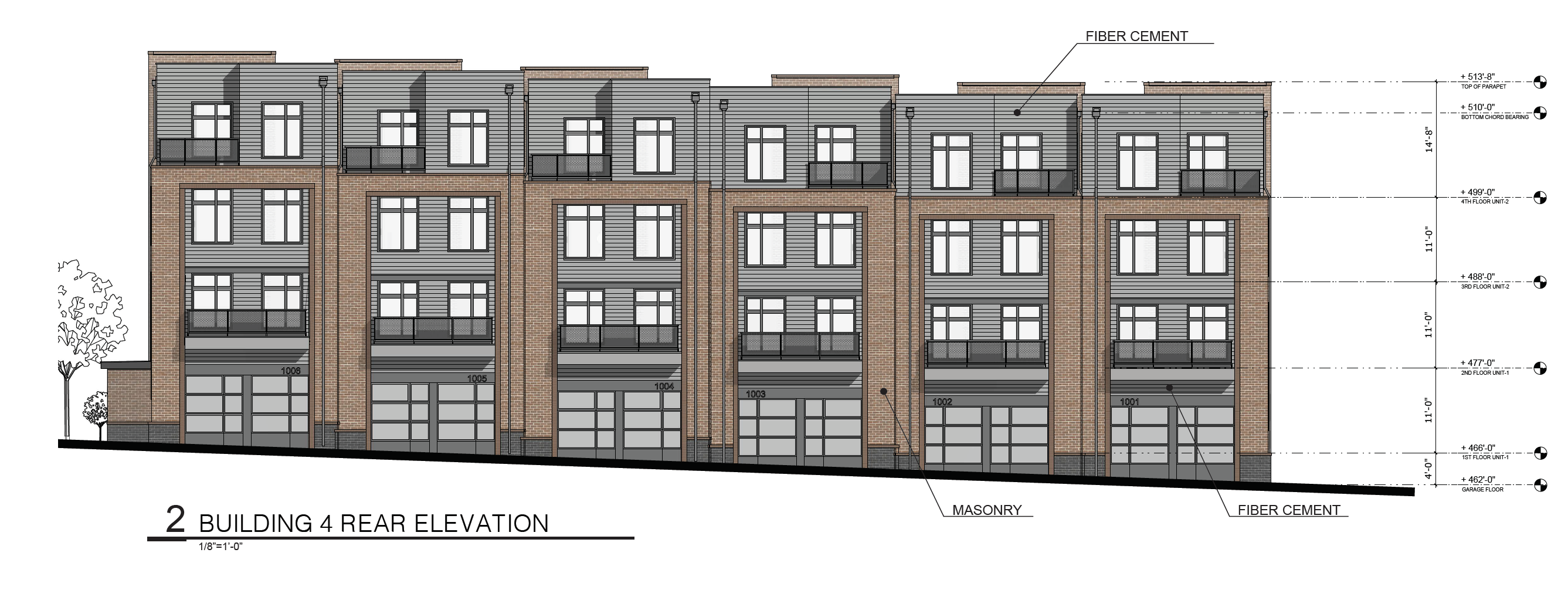

The design of different building facades will add to the community character without rigid aesthetic uniformity. The building architecture shall visually and physically relate to one another and the existing development and shall have varied facades. The majority of the buildings shall confirm to a more urban appearance. This will be achieved through character-defining building elements, details, materials and street facade arrangements prevalent in many attractive urban neighborhoods. Two-over-two and multifamily structures have varied building heights and architectural styles, adding to the character of the community. Varied material use is encouraged for building facades, balconies, and openings.






























Existing Carousel Study

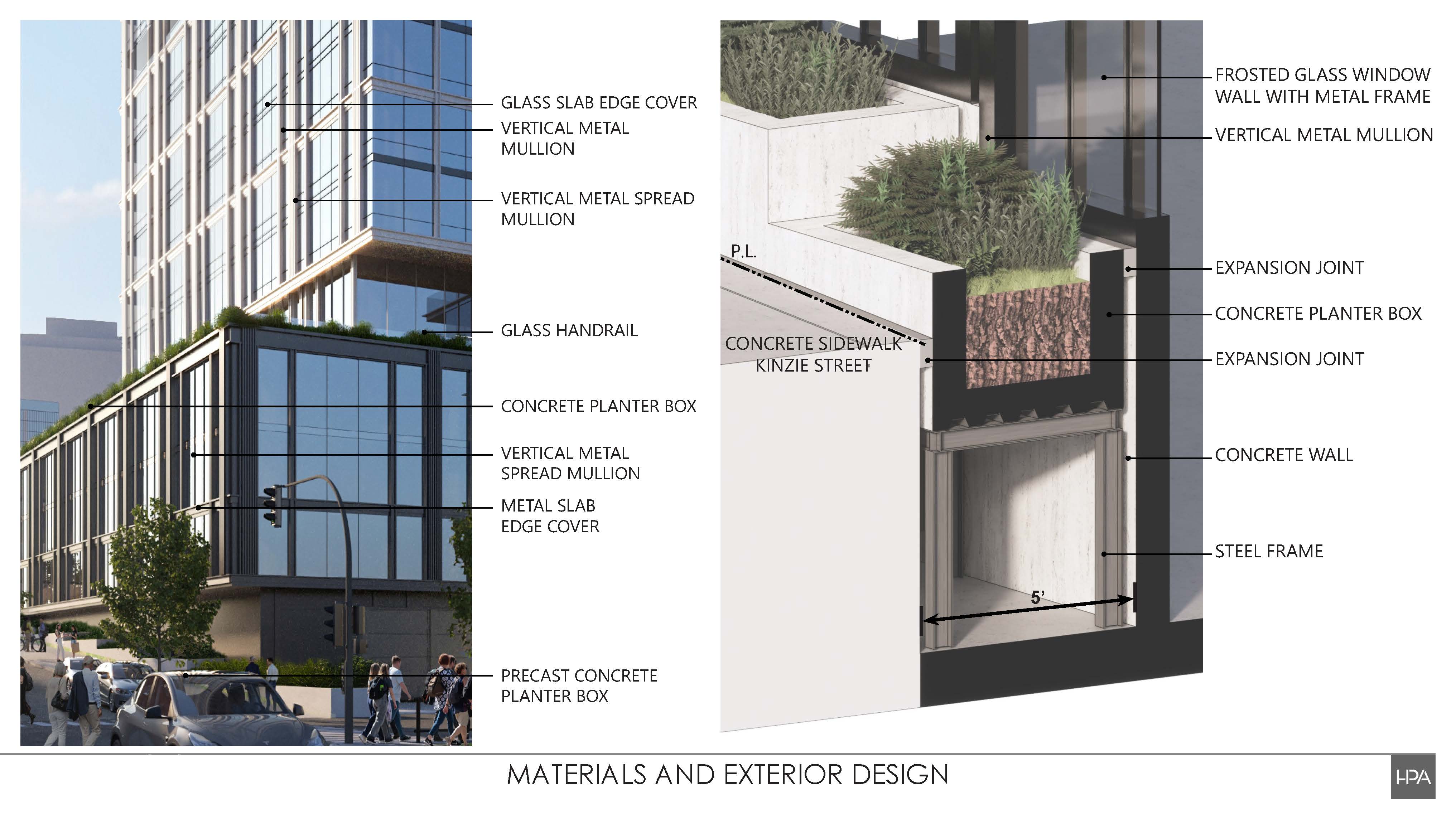

375 Morgan

-The 43-story Tower Will Rise Next to the New Guinness Brewery-
375 Morgan, Chicago, 2023 Plan Commission has Approved









The Chicago Plan Commission has approved the mixed-use development proposed at 375 N. Morgan. With the upcoming Guinness Brewery planned into the zoning, the overall project site spans W. Kinzie St from N. Peoria St to N. Morgan St with the Metra tracks to the south.

Focus:


Designed by Hartshorne Plunkard Architecture, the new tower will stand 43 stories, bringing 460 units to the site. The unit mix consists of 124 studios, 238 one-beds, 96 two-beds, and 2 three-beds. To meet the affordability requirements, 92 units will be provided at an average of 60% AMI, broken down into 25 studios, 48 one-beds, and 19 two-bedrooms.

The development is being planned by Latsko Interests, who has owned the site for many years, and JDL Development, whose involvement here is their first in the Fulton Market neighborhood.

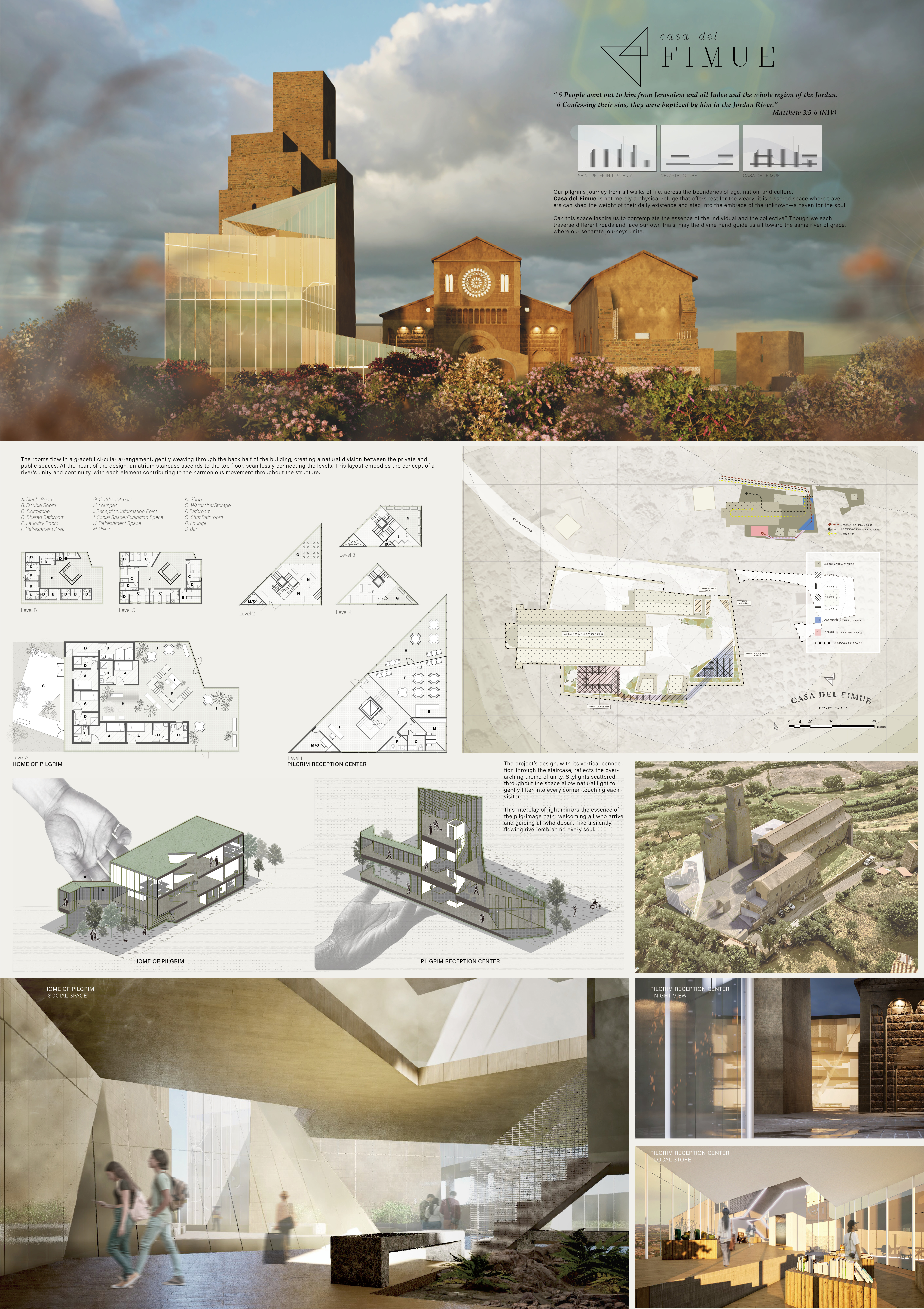

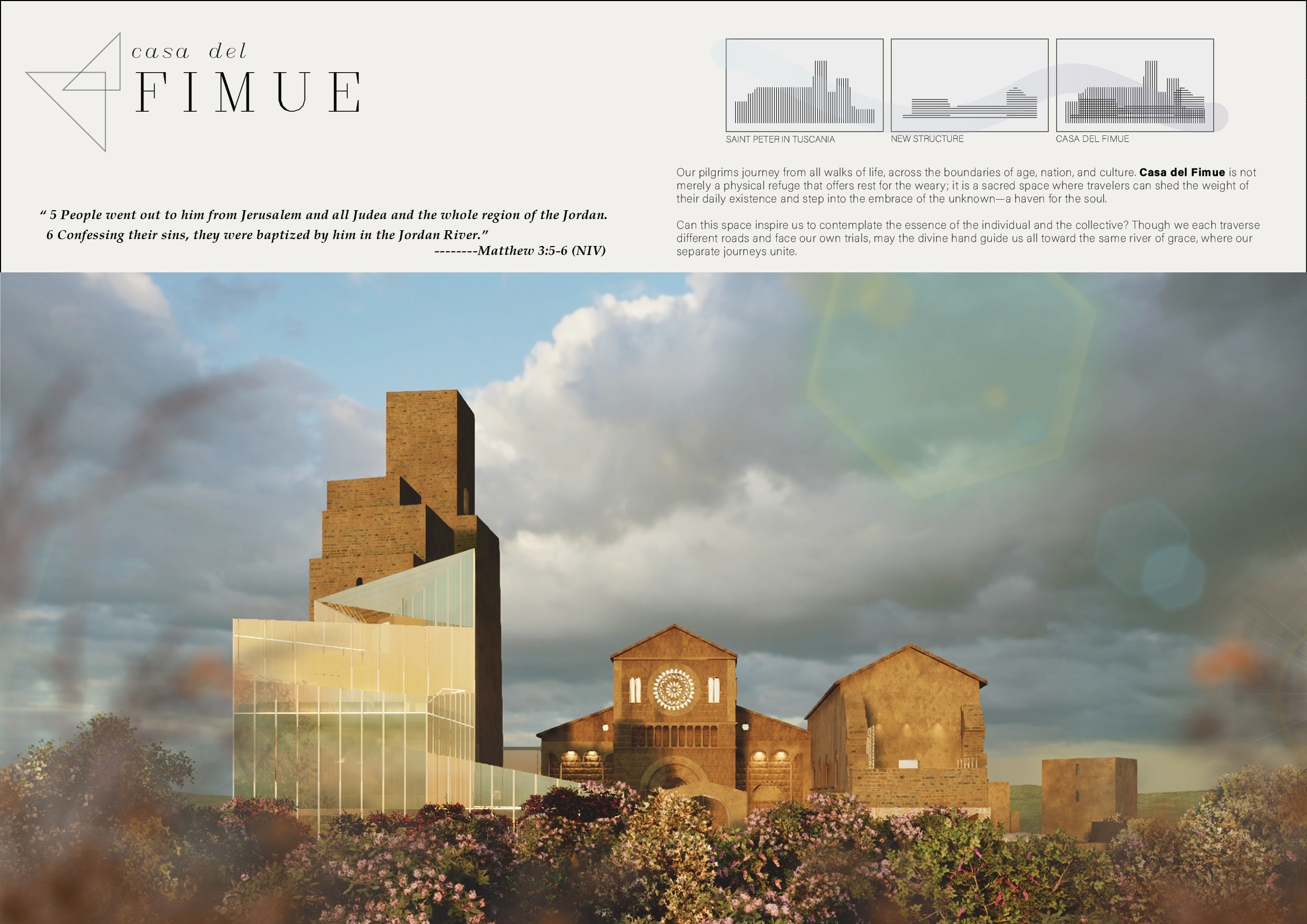

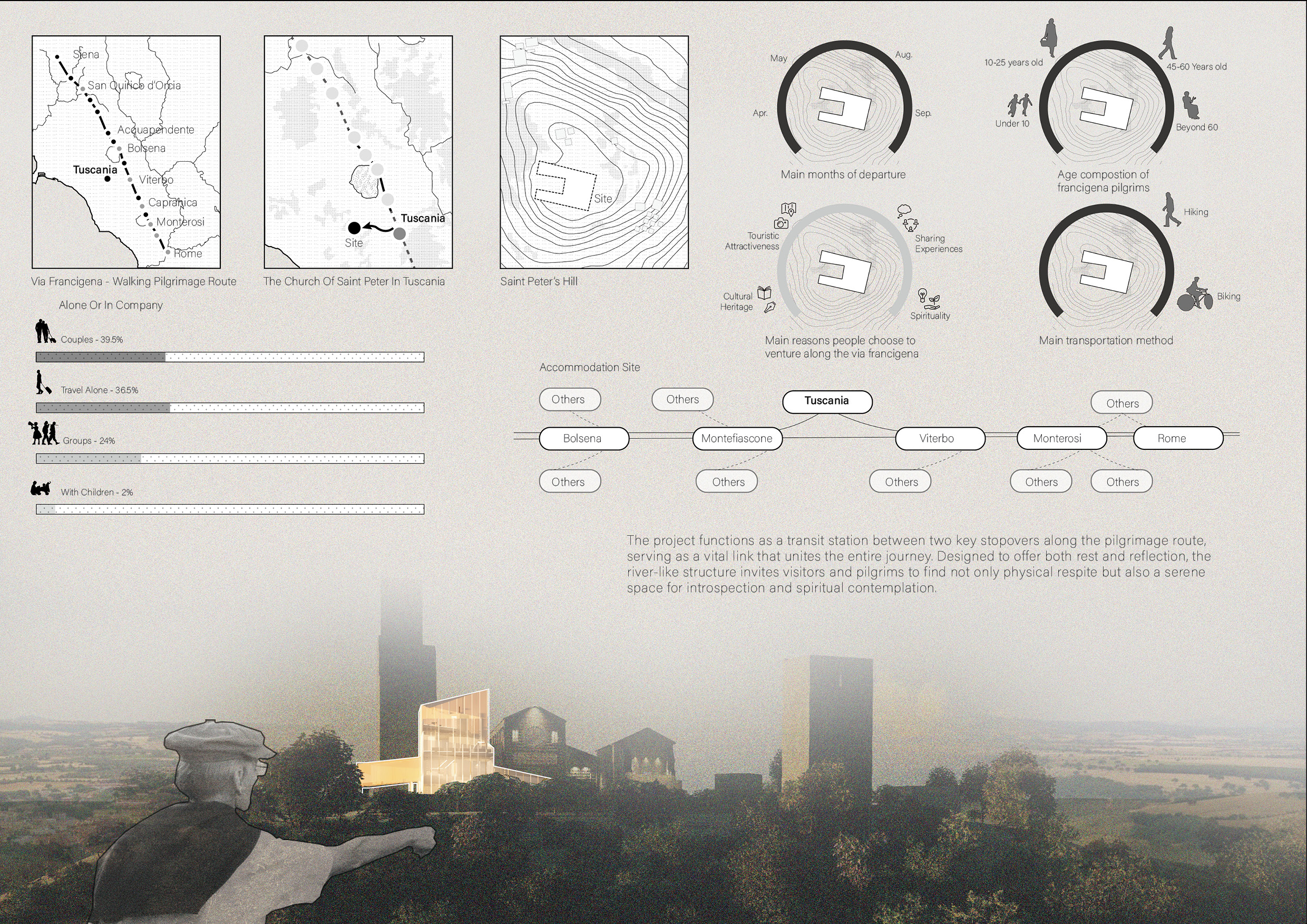

Casa del Fimue

-An Adequate Accommodation System for Pilgrimages-

Tuscania, Italy

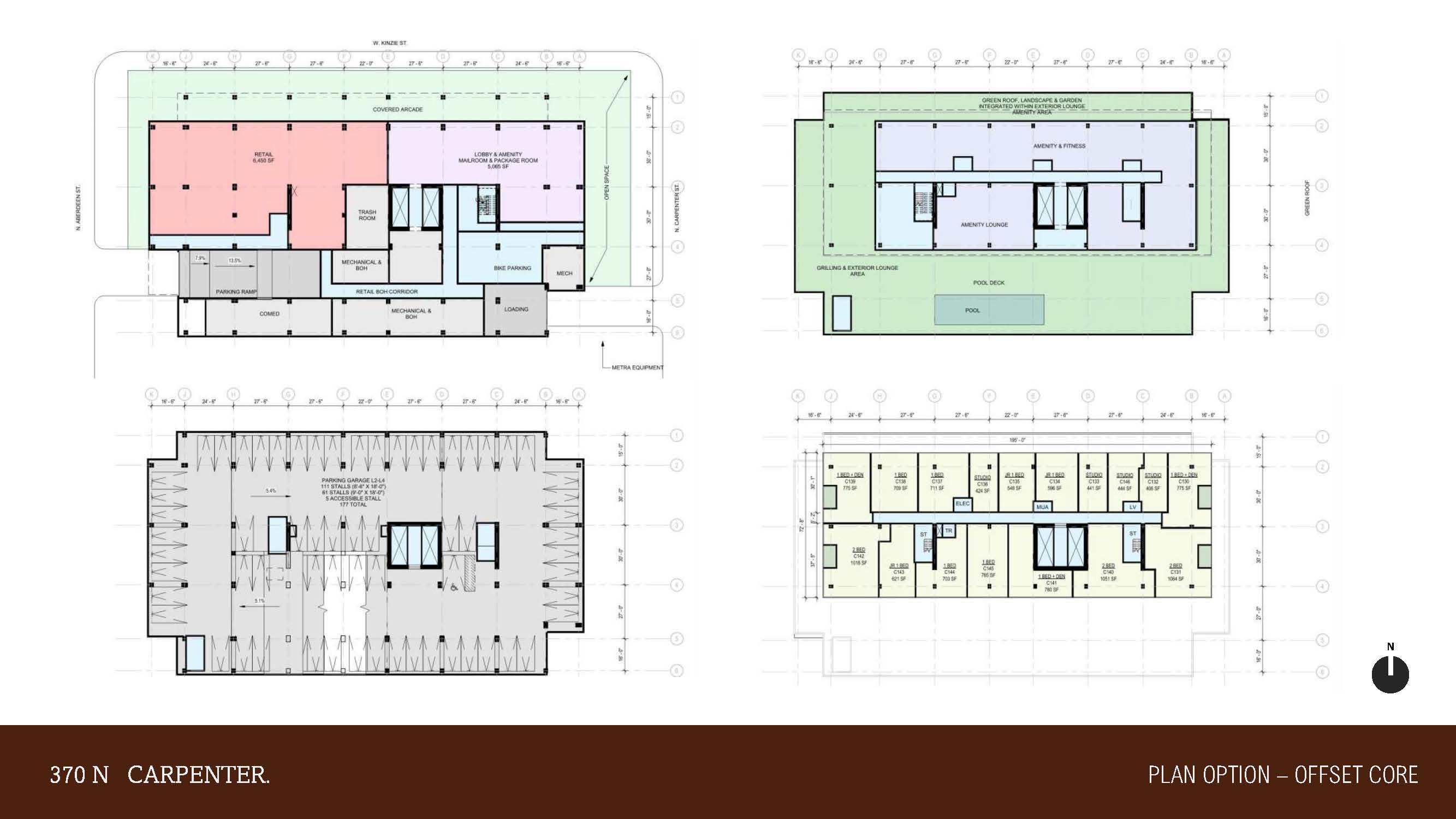

37oN. Carpenter

-Hospitality-
370N. Carpenter, Chicago, 2023 Pre-Design

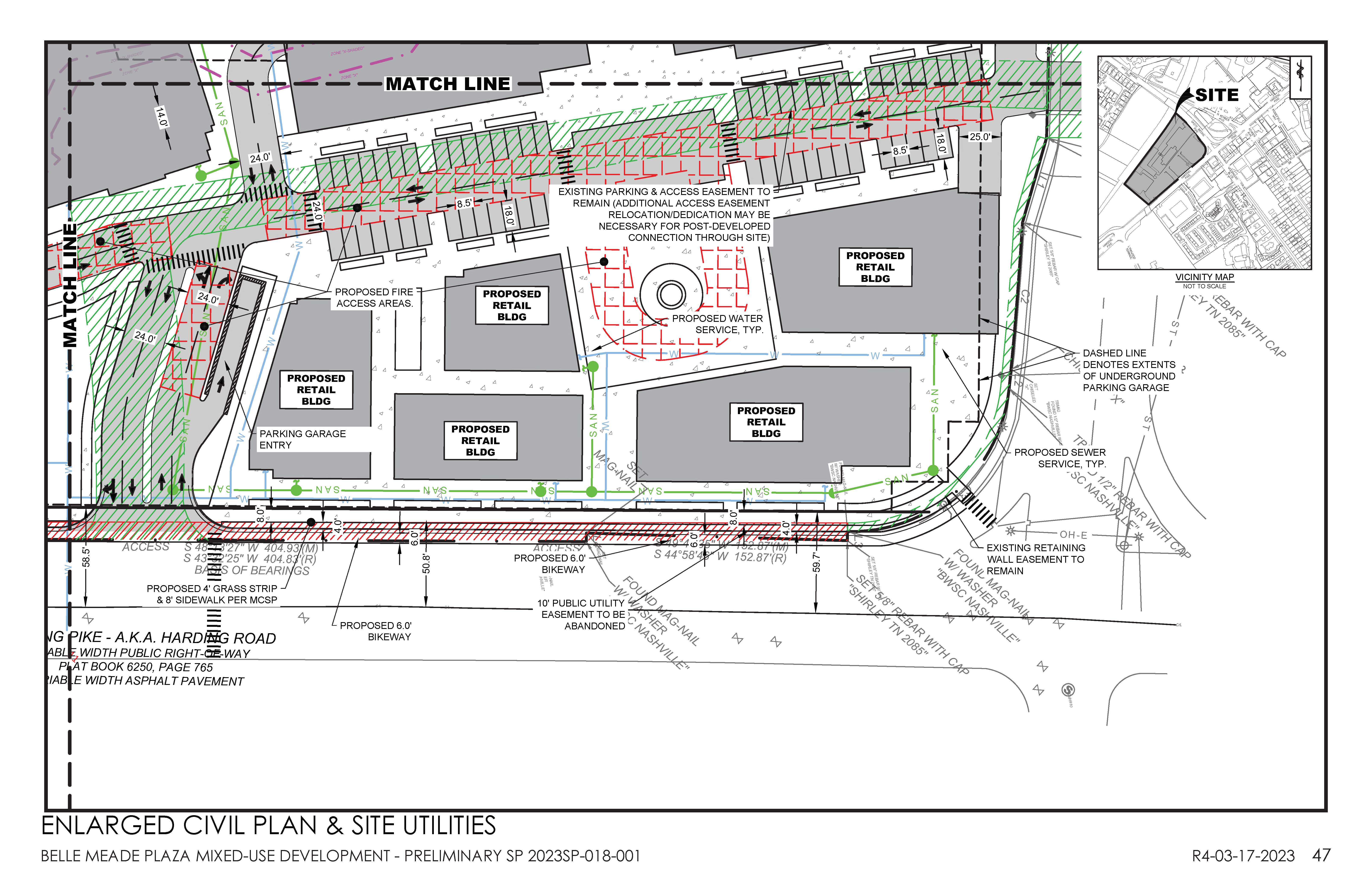

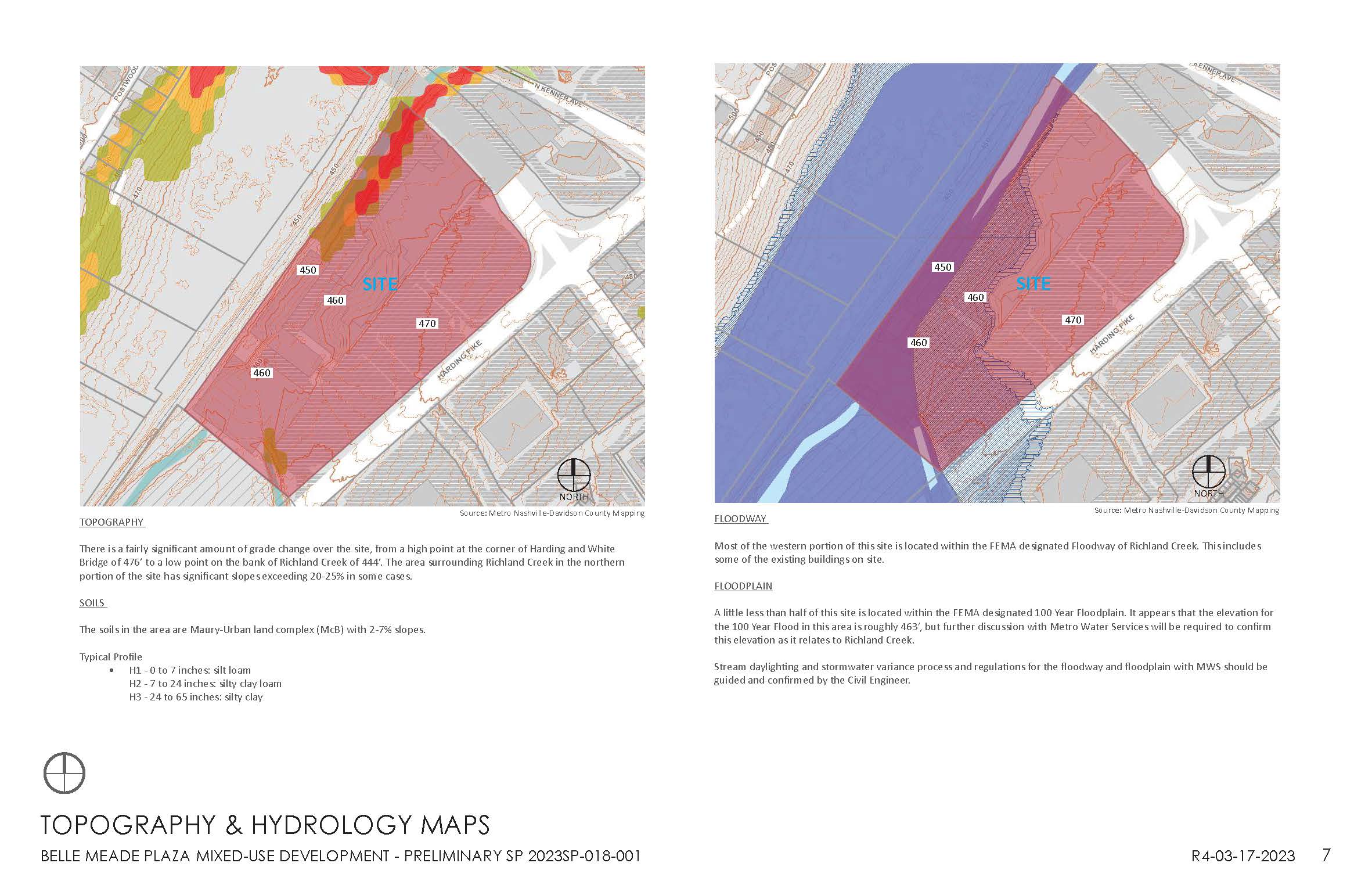

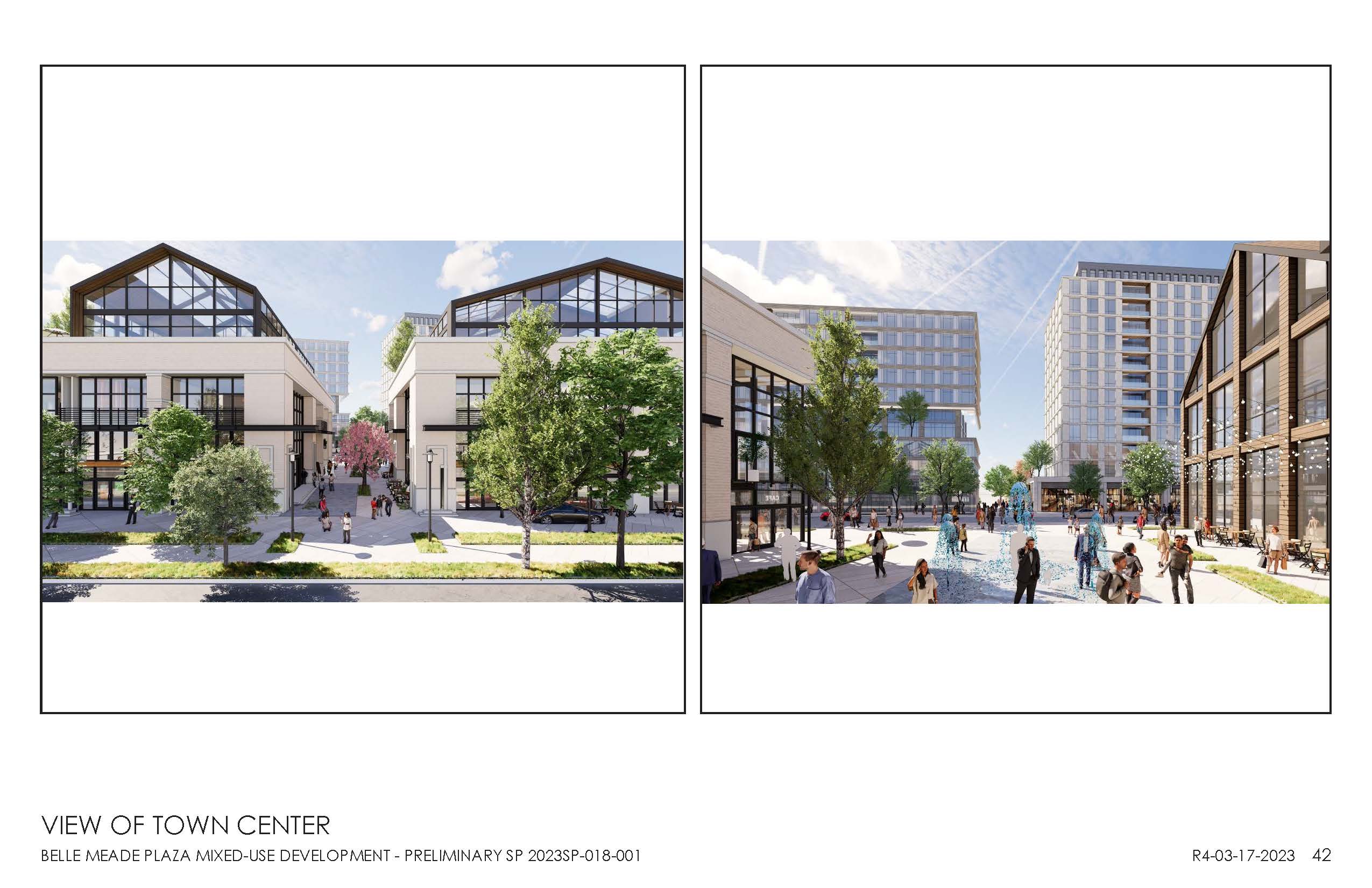

Belle Meade

-Mixed-Use Project-
4500 Harding Pike Nashville,TN 2023
Schematic Design








Focus:

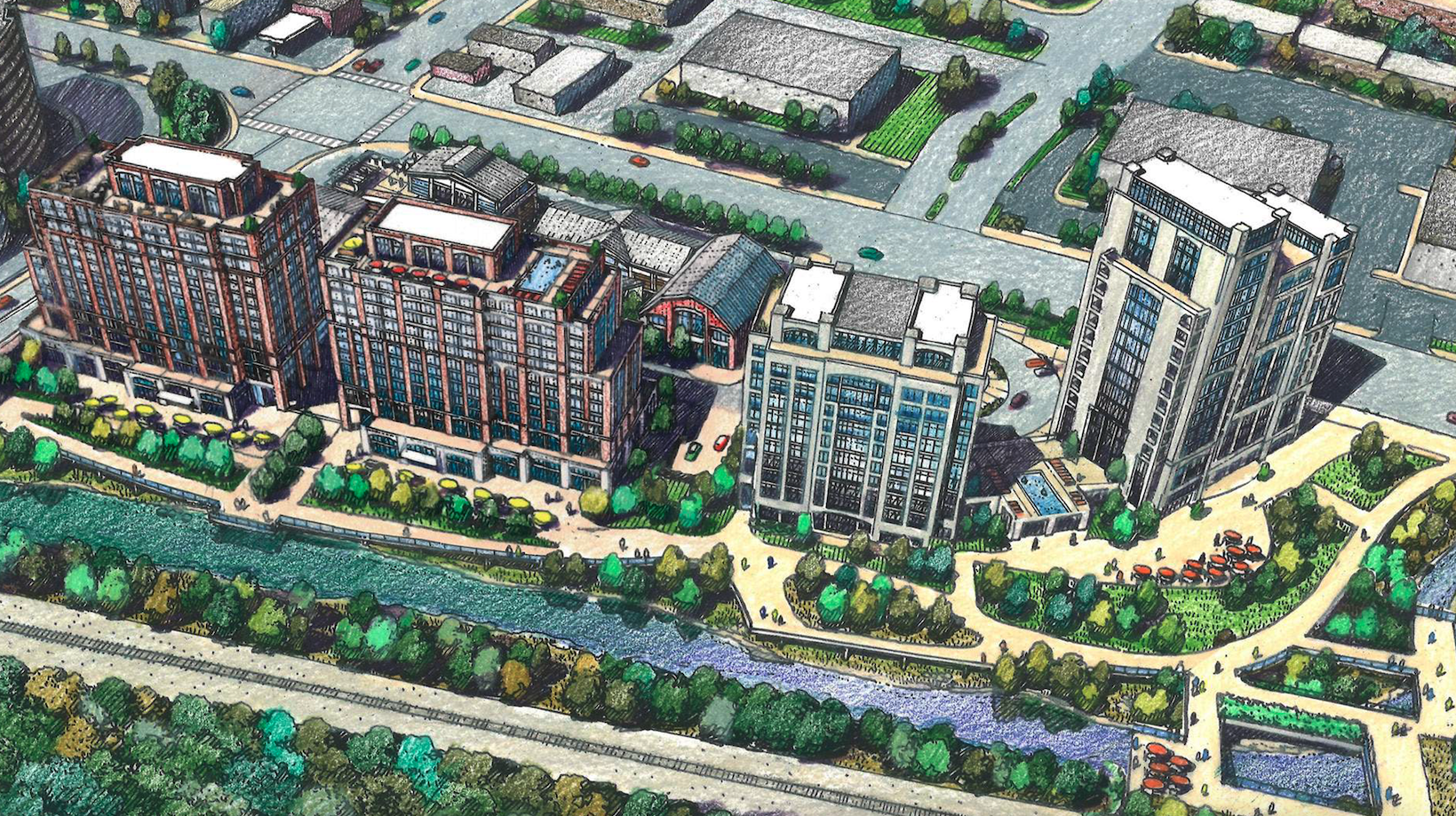

Belle Meade Plaza Shopping Center Eyed For Mixed Use Development in Nashville.

10.53 ACRES

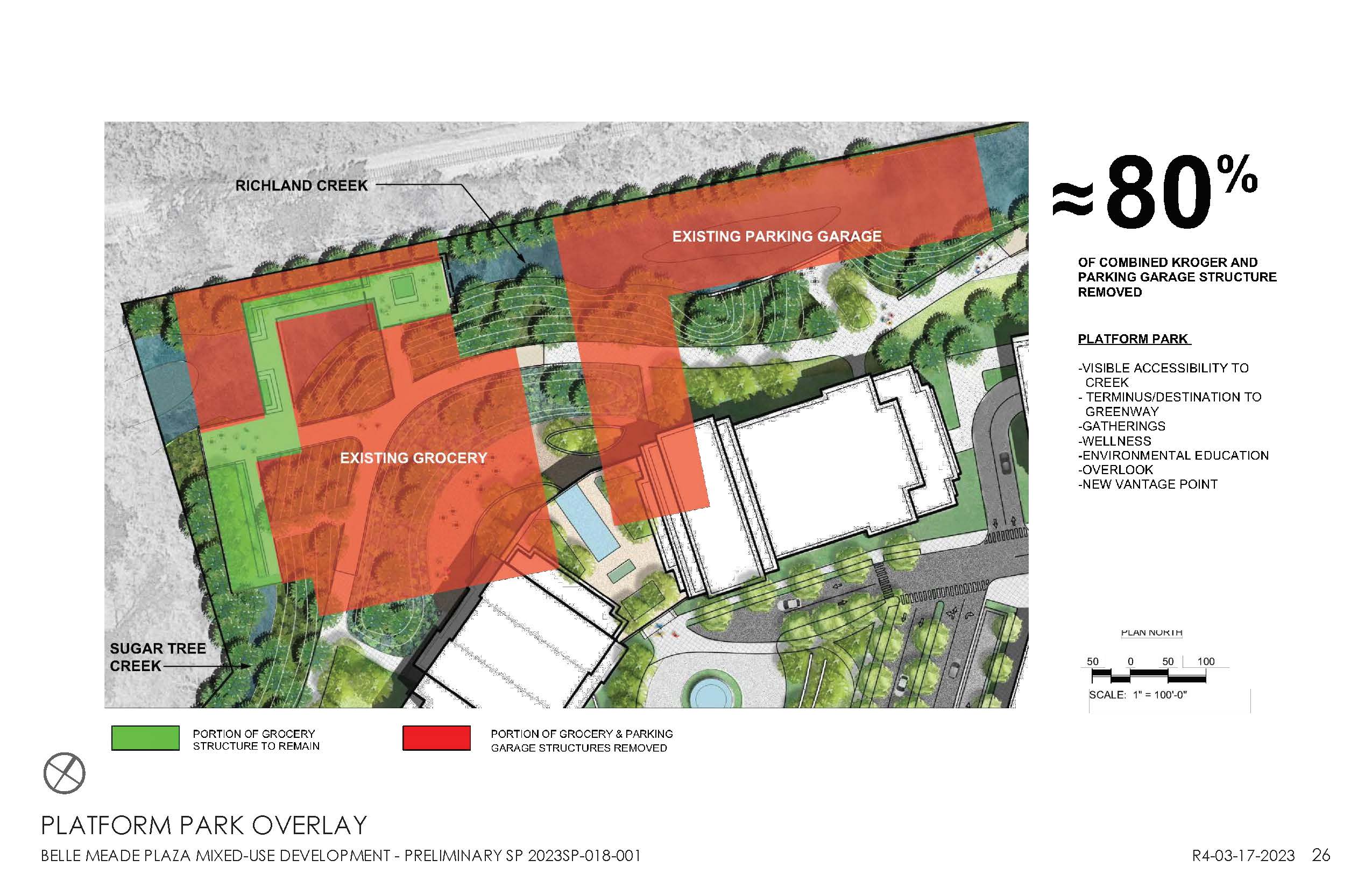

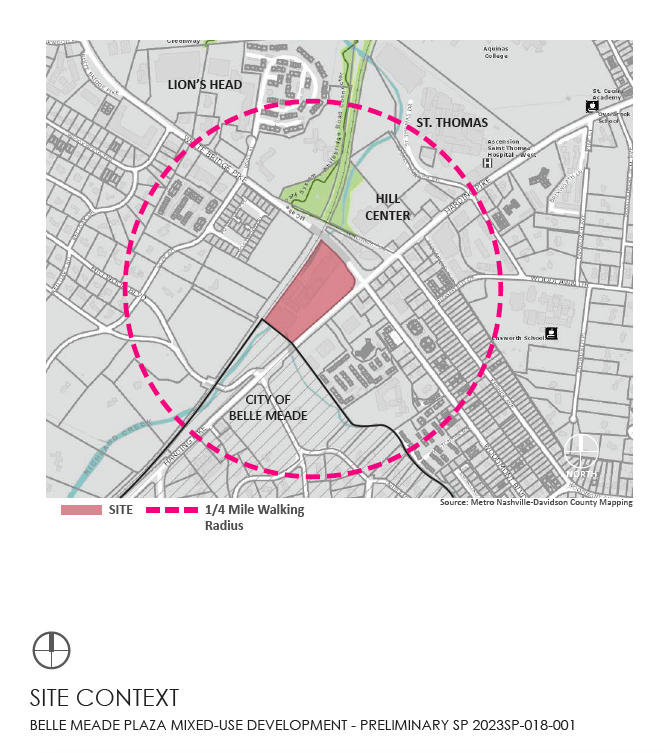

Developer, AJ Capital Partners has plans to transform the Bell Meade Plaza shopping center into a new mixed-use district. The property is located at the border of the Belle Meade city limits, near the intersection of White Bridge Pike and Harding Pike. The address is 4500 Harding Pike.
